Vertical Drilling Machine

Main Specifications
Drilling Diameter: 25,32,40,50
  • Machine Parmeters

Vertical Drilling Machine

Machine Description:

This vertical drilling machine is suitable for drilling, reaming, countersinking, boring, tapping and so on. Spindle can reverse automatically and micro-feed when tapping, extremely convenient for the blind hole and deep hole. Widely used in machinery manufacturing, workshop production, construction and many other industries.


Main Features

High efficiency, high rigidity, and high precision

Low noise, and wide range of speed

Easy operation and maintenance.

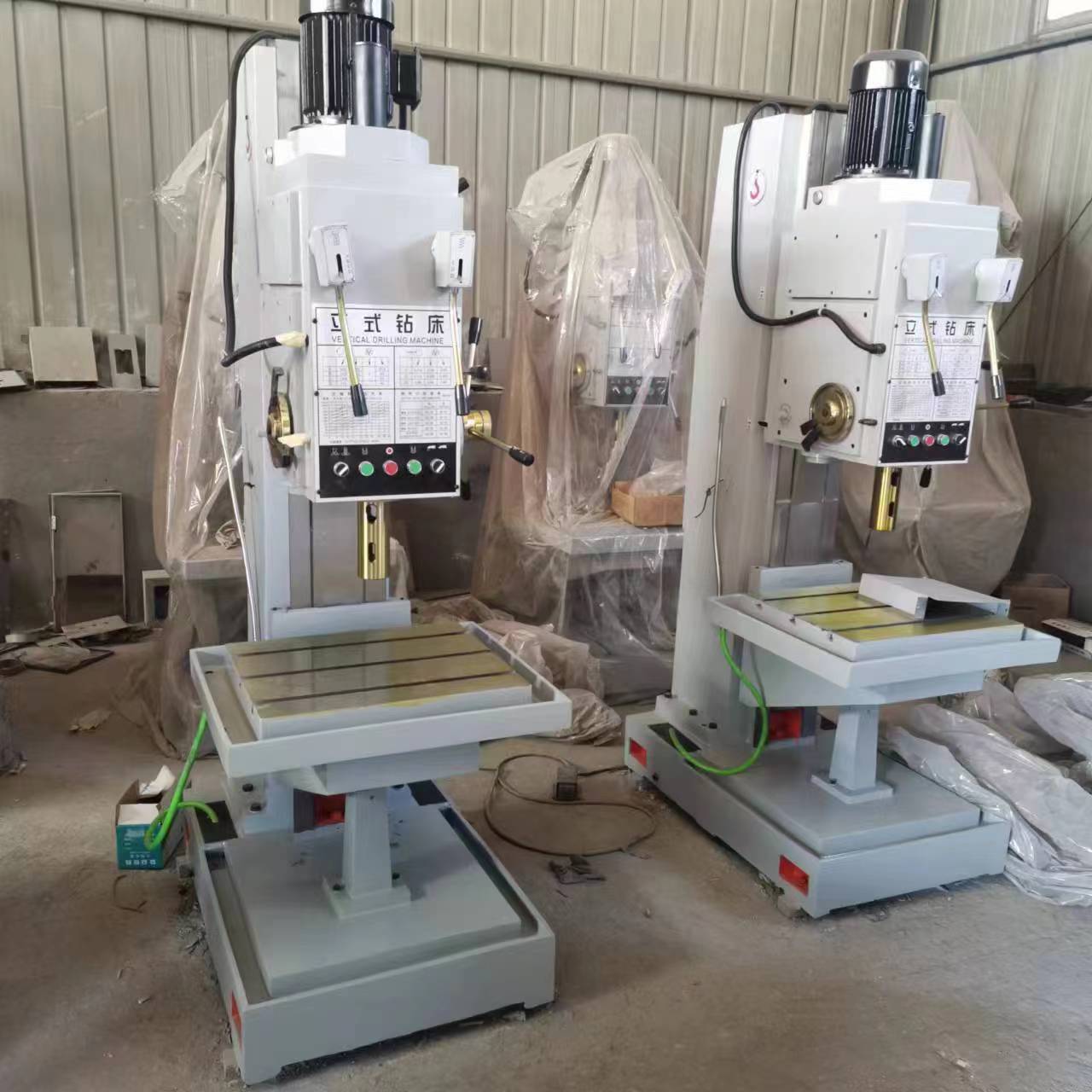

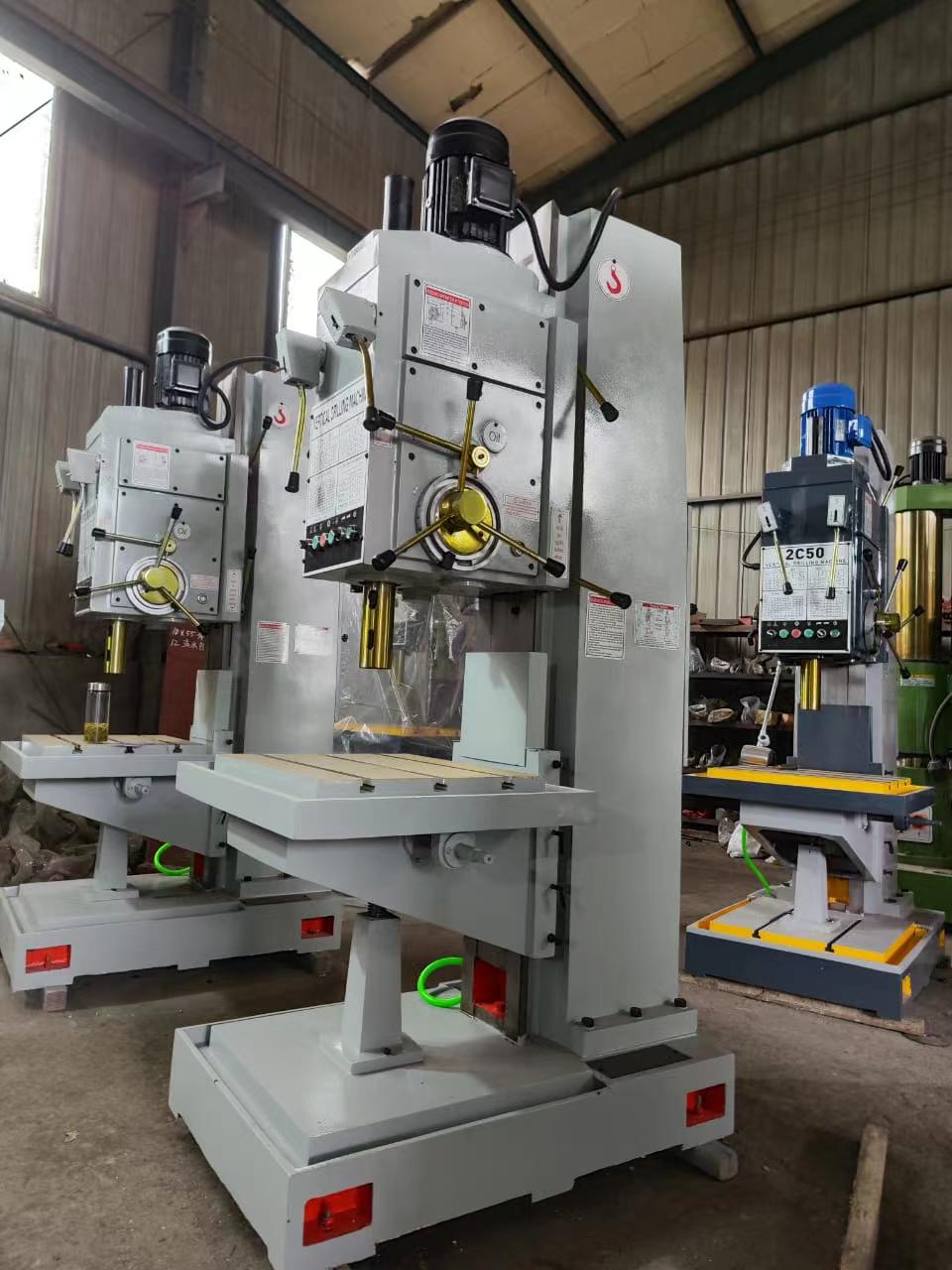

Main Picture



Detailed Parmeters

ITEM

UNIT

Z5125

    Z5132

 Z5140B

Z5150B

Max   drilling diameter

mm

25

32

40

50

Spindle  taper


MT3

MT4

MT4

MT5

Stroke of spindle quill

mm

200

200

250

250

Spindle box travel(manual)

mm

200

200

200

200

Spindle speed step

rpm

6

6

12

12

Spindle speed range

 rpm

41.5-1300

41.5-1300

31.5-1400

31.5-1400

Spindle feed step

 --

3

3

9

9

Spindle feed range


0.016-0.25

0.016-0.25

0.056-1.80

0.056-1.80

Table size

mm

560*410

560*410

560*480

560*480

Vertical travel

mm

250

250

300

300

Max   distance between spindle and table surface

mm

700

700

750

750

Main motor power

kw

2.2

2.2

3

3

Overall size

mm

1050*700*2200

1050*700*2200

1090*905*2465

1090*905*2465

Weight

kg

1000

1050

1250

1300

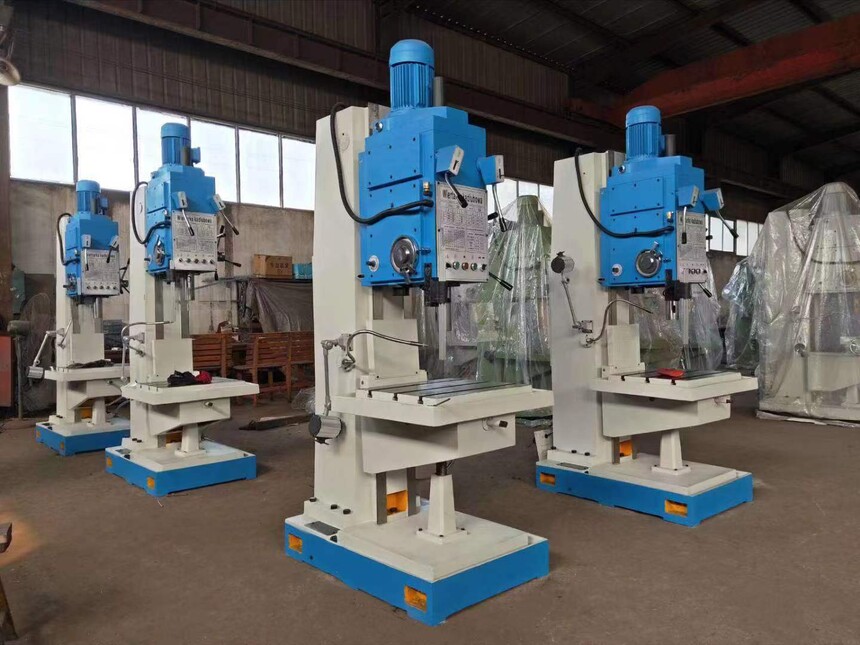

1712934861193401.jpg\
