Small Size Radial Drilling Machine

  • Machine Parmeters

Small Size Radial Drilling Machine

Machine Description:

This radial drilling machine is suitable for drilling, core drilling, reaming, spot-facing, and tapping on large or medium parts. It can also be used for boring with other necessary equipment.

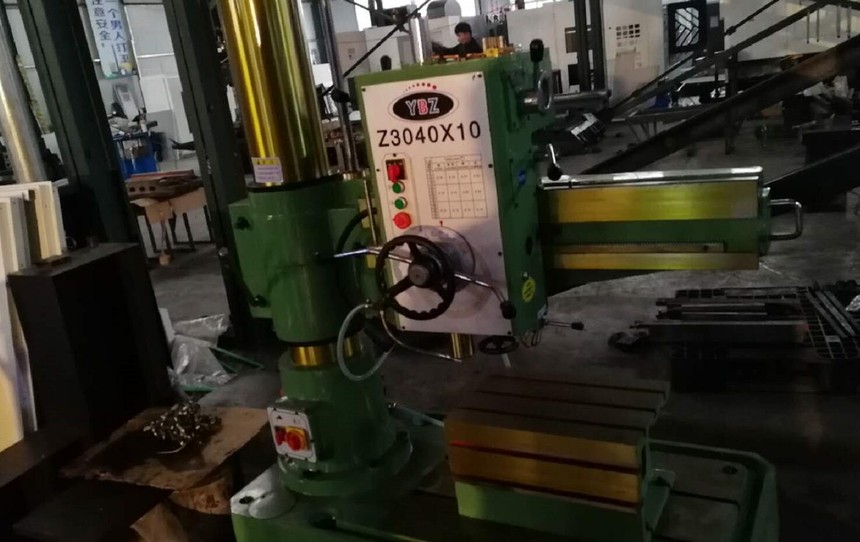

Main Picture:


Main Parmeters:

ITEM

Z3032*9

Z3040*13

Z3050*16

Max drilling   diameter

32mm

40mm

50mm

Distance from spindle center to column surface

220-980mm

350-1000mm

350-1600mm

Spindle travel

120mm

315mm

315mm

Spindle taper

Morse 4

Morse 4

Morse 5

Spindle speed range

108-1000 rpm

25-2000 rpm

25-2000 rpm

Spindle motor power

1.5/2.2kw

3kw

4kw

Voltage

3 AC  380V 50HZ

3 AC  380V 50HZ

3 AC  380V 50HZ

Overall dimension

1235*600*1780mm

2150*1070*2840mm

2500*1070*2880mm

Weight

980kg

3000kg

3500kg

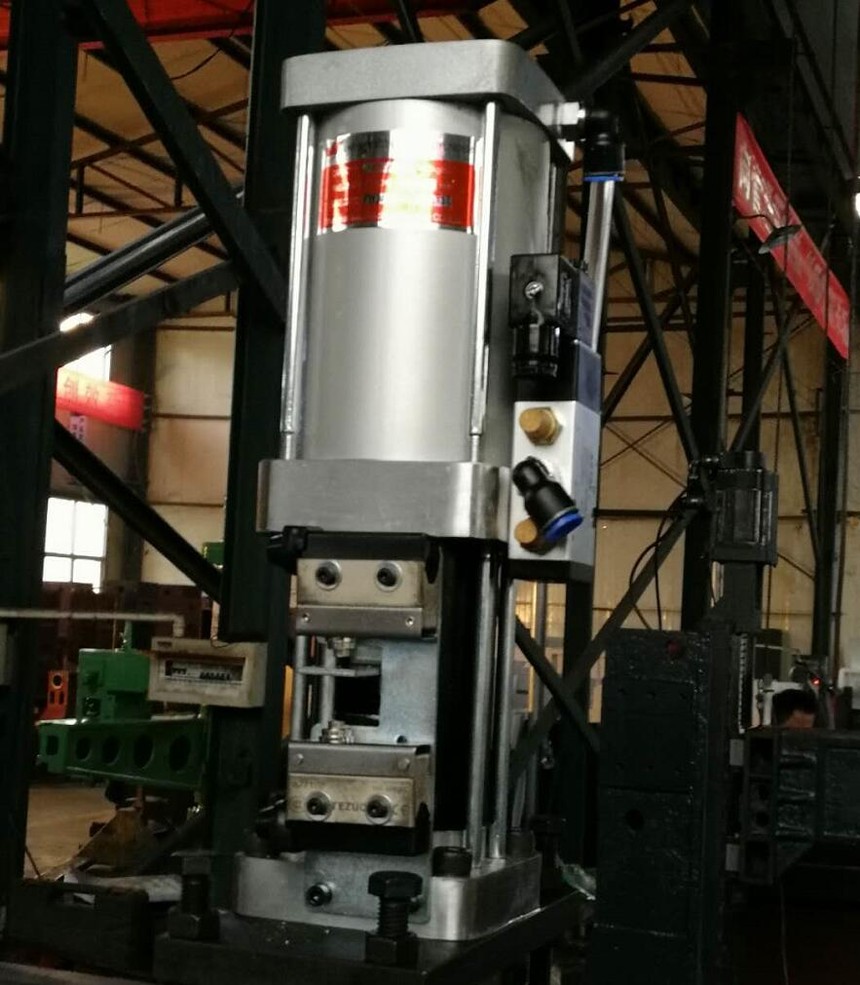

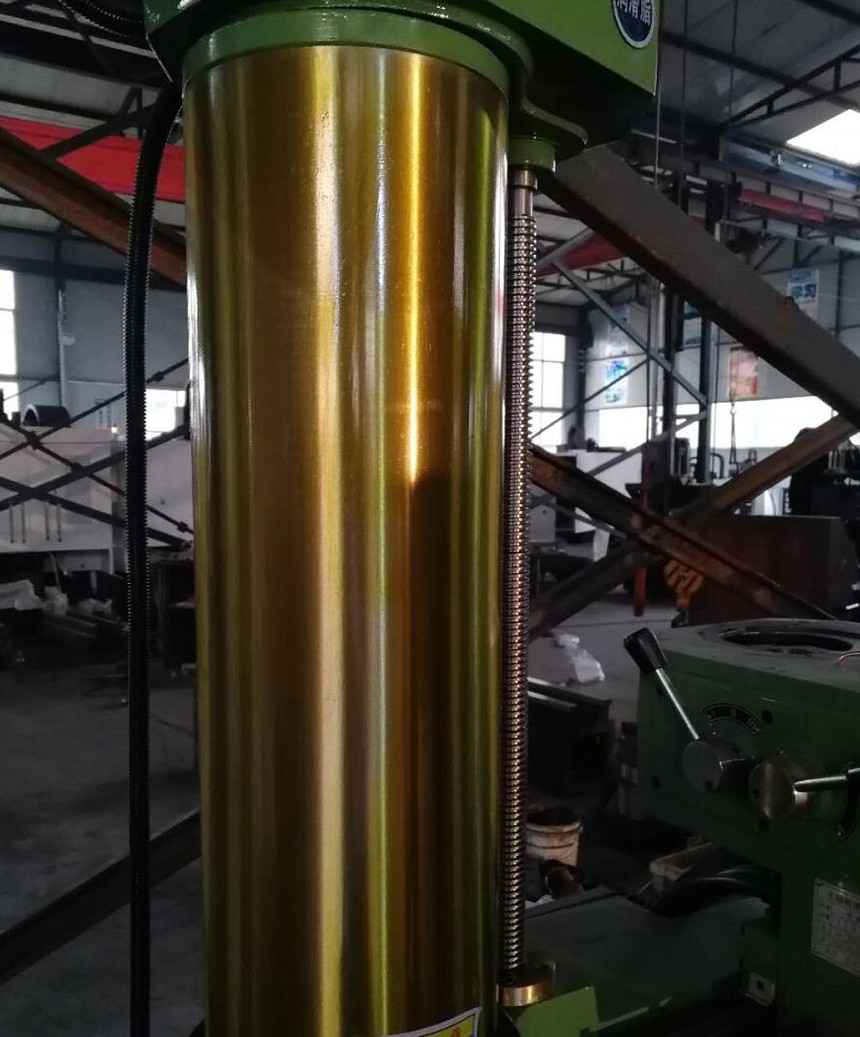

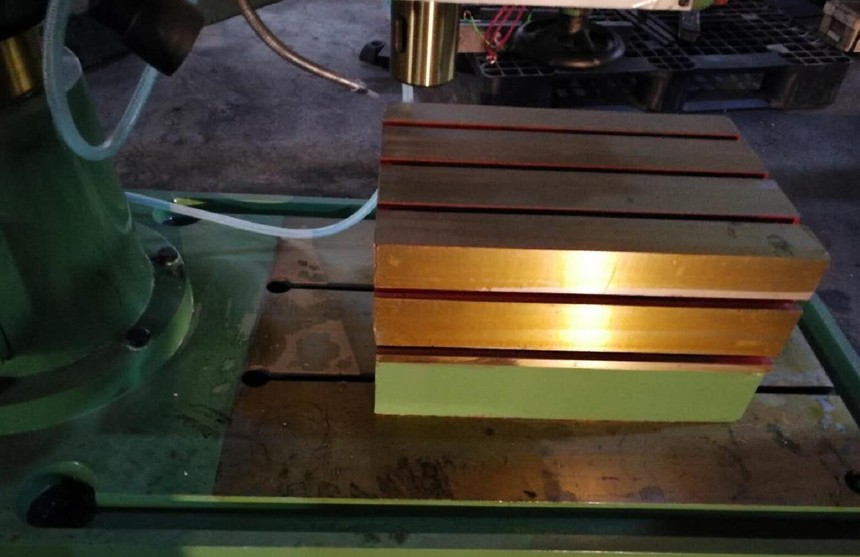

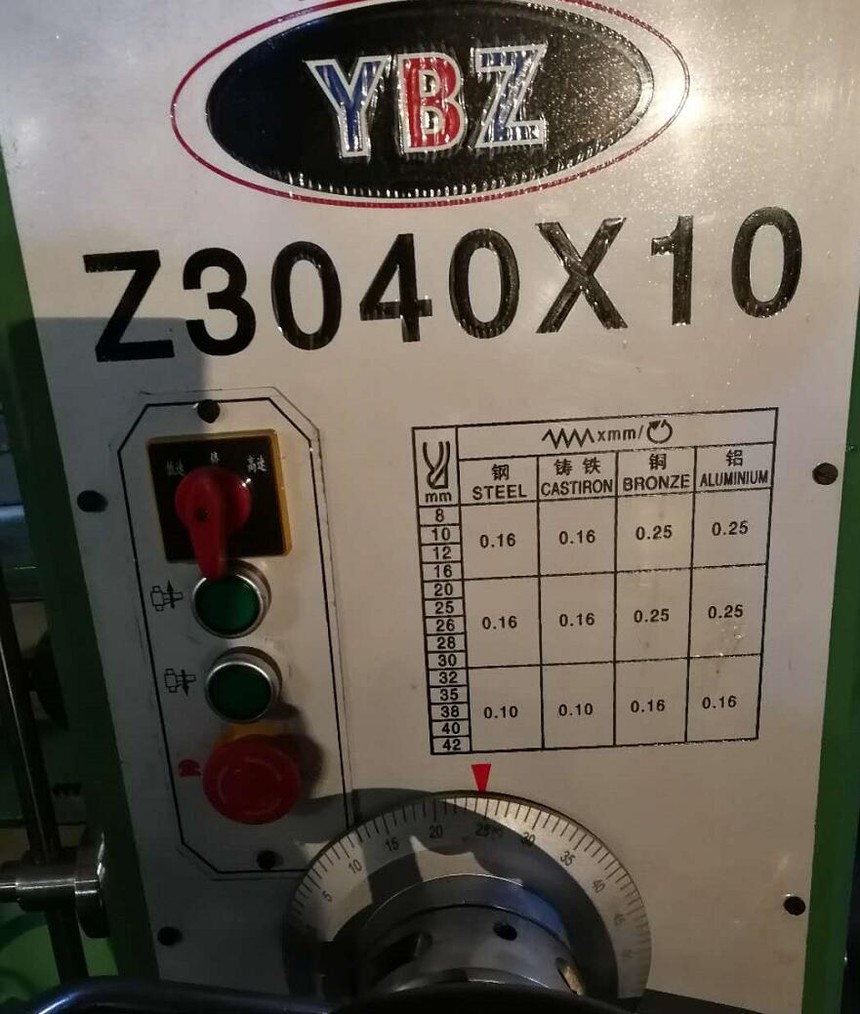

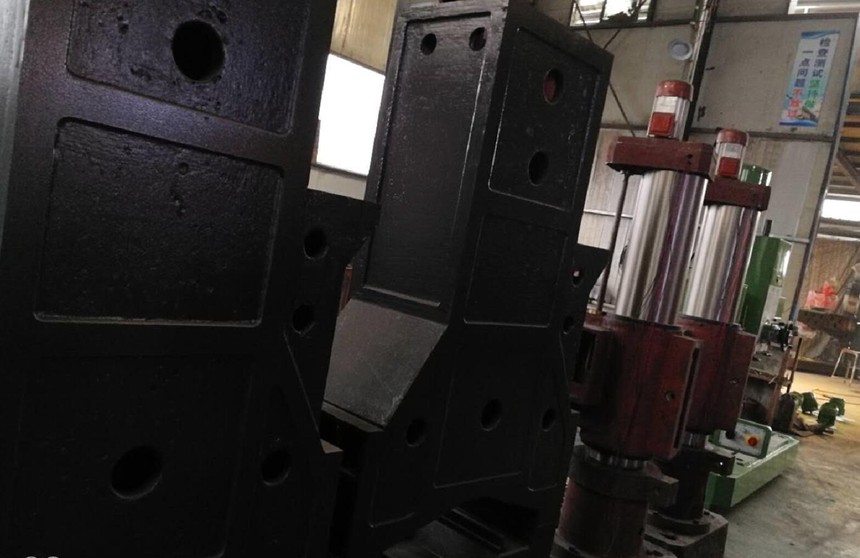

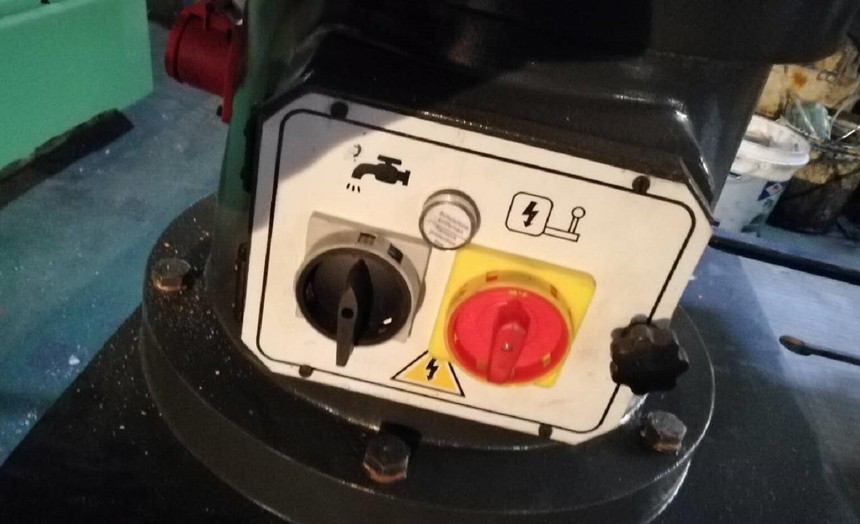

Machine detailed pictures:
