Bench Type Milling Machine
Machine Description:
Bench drilling machine can be placed on the work table, and the main spindle box and table are fixed to the column.
Main Features
Small and easy to operate with low noise
High power and high precision

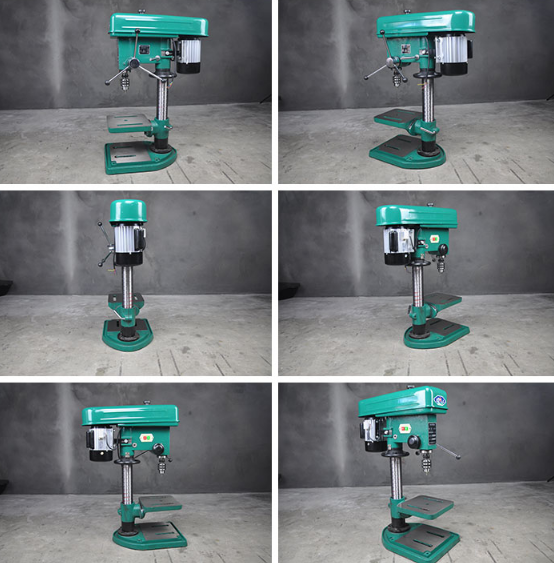

Main Ficture
Main Paremeters
ITEM | 13mm | 16mm | 25mm | 32mm |
Motor | 250w | 370w | 750w | 1500w |
Swing | 210mm | 254mm | 432mm | 508mm |
Chuck Size | 1.5-13mm | 3-16mm | 3-16mm | 3-16mm |
Max drilling capacity | 13mm | 16mm | 25mm | 32mm |
Taper | B16 | MT2 | MT2/MT3 | MT3/MT4 |
Spindle travel | 50mm | 60mm | 80mm | 120mm |
Speed level | 5 | 12 | 12 | 12 |
Speed range(rpm)/50Hz | 600-2580 | 210-2580 | 120-2580 | 150-2700 |
Speed range(rpm)/60Hz | 620-3100 | 250-3050 | 140-3050 | 140-3050 |
Overall height | 575mm | 840mm | 1650mm | 1710mm |
Packing size | 445*345*225mm | 765*430*195mm | 1430*170*170mm 830*570*290mm | 1440*650*320 mm |
Net/Gross weight | 20/21kg | 37/42kg | 90/96kg | 138/148kg |
Unit per 20-foot container | 830 | 450 | 120/170 | 90 |

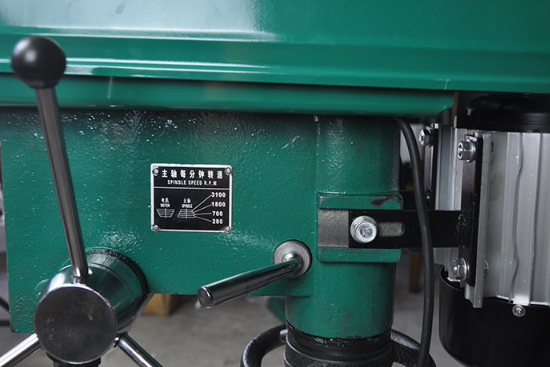

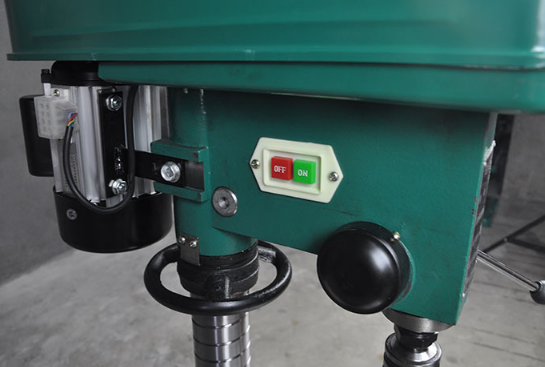

Detailed Pictures

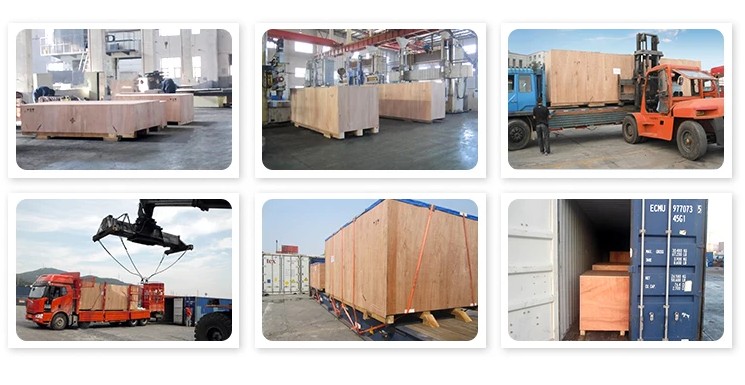

Machine Packaging and shipping
